Construction details of the prototypes

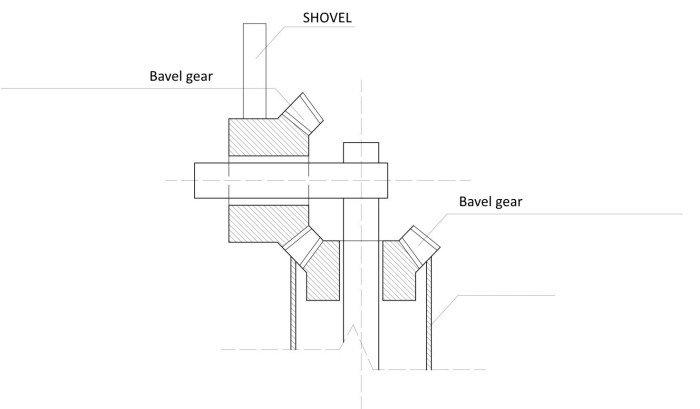

In the image below you can see how the blades are synchronized.

dettaglio ingranaggi_ENG

The synchronization is done simply with two bevel gears (ratio 1: 1): one fixed on the static part of the machine (called jacket) and the other is fixed to the movable arm of the shovel which therefore rotates with the same angular velocity of the vertical axis.

The prototypes in the following video are based on this construction method:
